1761634001 | Weidmüller

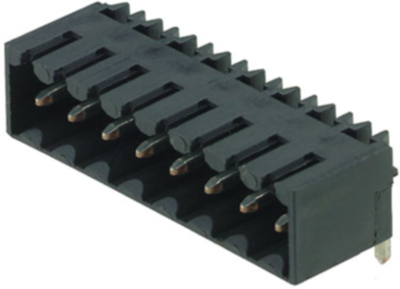

Pin header, 11 pole, pitch 3.5 mm, angled, black, 1761634001
Order No.: 52P0616
EAN: 4032248136070
MPN:
1761634001
SL-SMT 3.50/11/90G 1.5SN BK RL
Unit Price (€ / pc.)
3.0107 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 1761634001, Weidmüller
Printed circuit board connector, closed side, THT/THR solder termination, 3.50 mm, no. of poles: 11, 90°, 1.5 mm, tinned, black, tape (Ø 330 mm).
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Pin number | 11 pole | |
| Colour | black | |
| Contact type | pin | |
| Rated current | 15 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
