1761614001 | Weidmüller

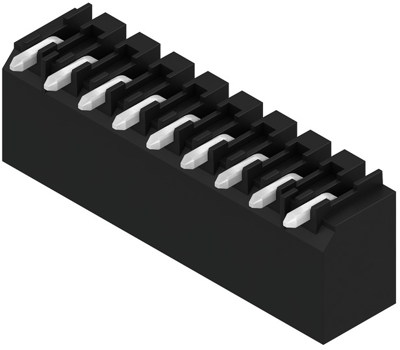

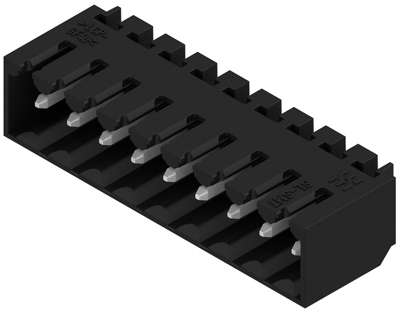

Pin header, 9 pole, pitch 3.5 mm, angled, black, 1761614001
Order No.: 52P0613
EAN: 4032248136056
MPN:
1761614001
SL-SMT 3.50/09/90G 1.5SN BK RL
Unit Price (€ / pc.)
2.5585 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 1761614001, Weidmüller
PCB connector, closed side, THT/THR solder termination, 3.50 mm, no. of poles: 9, 90°, 1.5 mm, tin plated, black, tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 3.5 mm | |
| Pin number | 9 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 39239000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
