1761564001 | Weidmüller

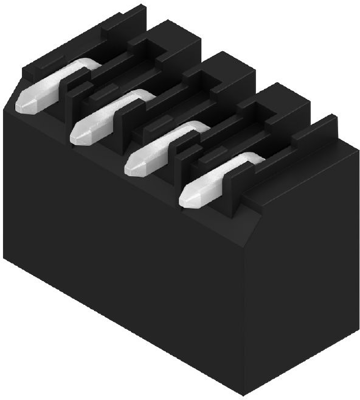

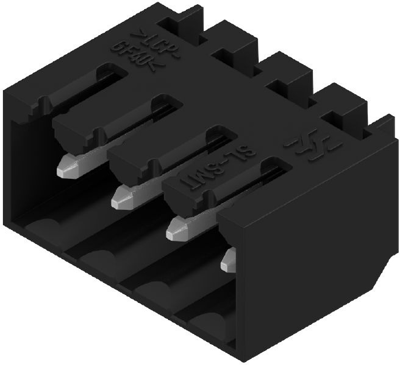

Pin header, 4 pole, pitch 3.5 mm, angled, black, 1761564001
Order No.: 52P0604
EAN: 4032248135905
MPN:
1761564001
SL-SMT 3.50/04/90G 1.5SN BK RL
Unit Price (€ / pc.)
1.4875 € *
Standard delivery time from the manufacturer is: 13 Weeks
Male connector, 1761564001, Weidmüller
PCB connector, closed side, THT/THR solder termination, 3.50 mm, no. of poles: 4, 90°, 1.5 mm, tinned, black, tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 15 A | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Pin number | 4 pole | |
| Orientation | angled | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Colour | black | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
