1748500000 | Weidmüller
Socket header, 8 pole, pitch 3.5 mm, straight, black, 1748500000
Order No.: 52P0364
EAN: 4032248038213
MPN:
1748500000
B2L 3.50/08/180LH SN BK BX
Unit Price (€ / pc.)
5.593 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

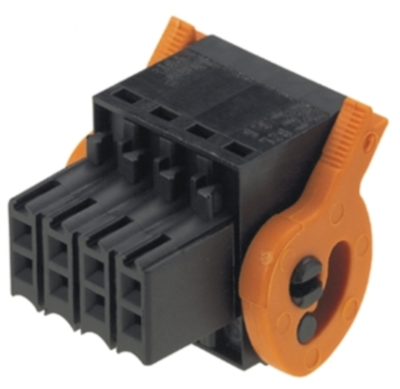

Female connector, 1748500000, Weidmüller
PCB connectors, release lever, 3.50 mm, no. of poles: 8, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | tension clamp connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 200 V | |
| Rated current | 10.3 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
