1729680000 | Weidmüller

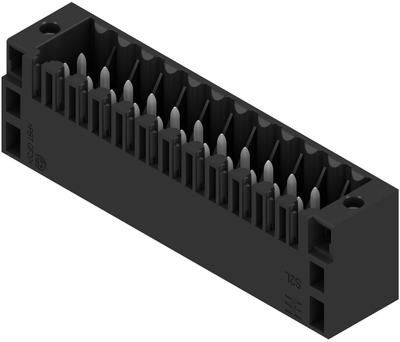

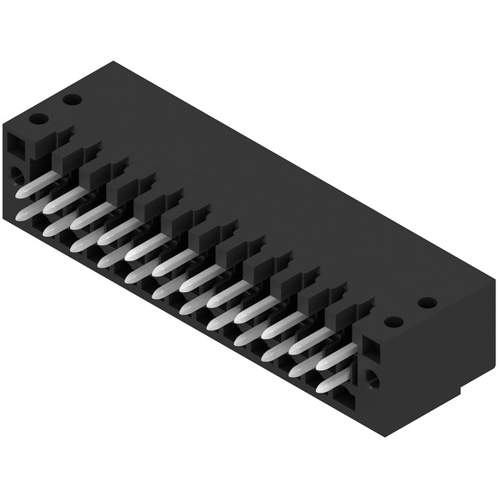

Pin header, 24 pole, pitch 3.5 mm, straight, black, 1729680000
Order No.: 51P9965
EAN: 4032248041084
MPN:
1729680000
S2L 3.50/24/180F 3.5SN BK BX
Unit Price (€ / pc.)
5.8191 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 1729680000, Weidmüller
PCB connectors, flange, THT solder termination, 3.50 mm, no. of poles: 24, 180°, 3.5 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Grid | 3.5 mm | |
| Rated current | 10 A | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated voltage | 250 V | |
| Additional parts | equipped | |
| Pin number | 24 pole | |
| Orientation | straight | |
| Contact type | pin | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
