1729620000 | Weidmüller

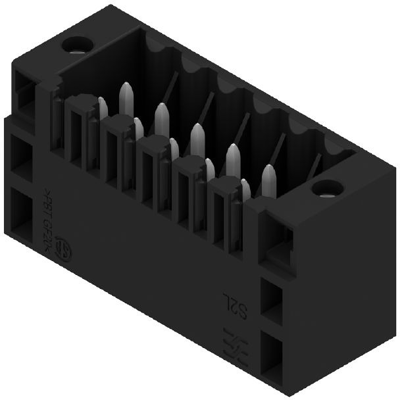

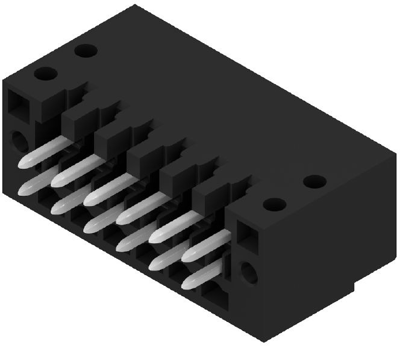

Pin header, 12 pole, pitch 3.5 mm, straight, black, 1729620000
Order No.: 51P9961
EAN: 4032248041022
MPN:
1729620000
S2L 3.50/12/180F 3.5SN BK BX
Unit Price (€ / pc.)
3.1773 € *
Standard delivery time from the manufacturer is: 16 Weeks
Male connector, 1729620000, Weidmüller
PCB Connector, flange, THT solder termination, 3.50 mm, no. of poles: 12, 180°, 3.5 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 250 V | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Version | pin header | |
| Colour | black | |
| Grid | 3.5 mm | |
| Rated current | 10 A | |
| Contact type | pin | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
