1729600000 | Weidmüller

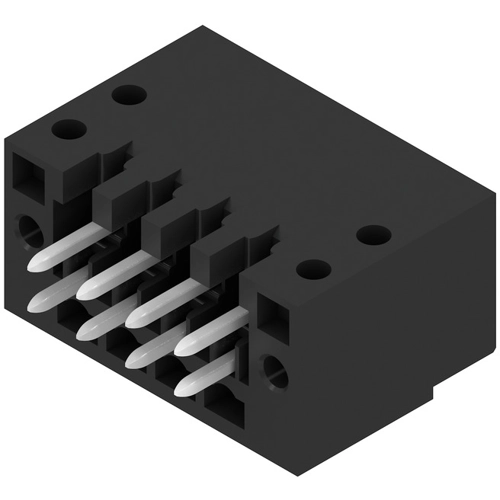

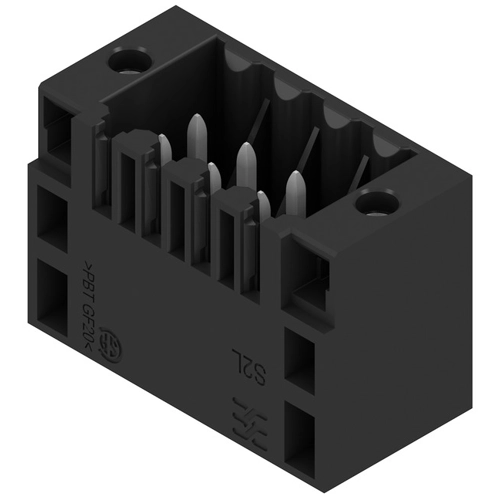

Pin header, 8 pole, pitch 3.5 mm, straight, black, 1729600000
Order No.: 51P9960
EAN: 4032248041008
MPN:
1729600000
S2L 3.50/08/180F 3.5SN BK BX
Unit Price (€ / pc.)
2.3562 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 1729600000, Weidmüller

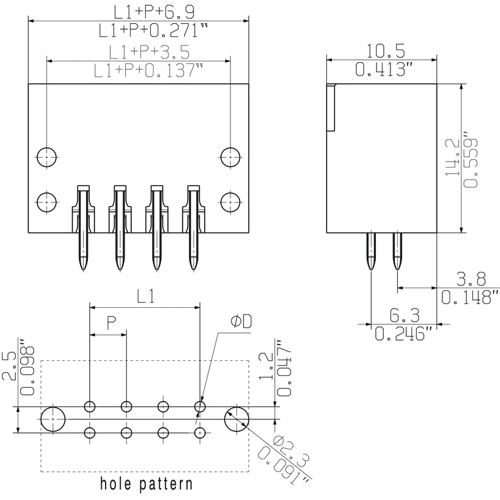

Printed circuit board connector, flange, THT solder termination, 3.50 mm, no. of poles: 8, 180°, 3.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Pin number | 8 pole | |
| Colour | black | |
| Contact type | pin | |
| Rated current | 10 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
