1728690000 | Weidmüller

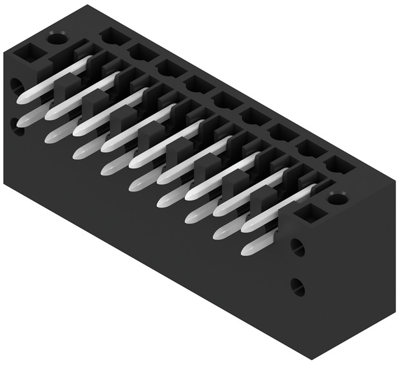

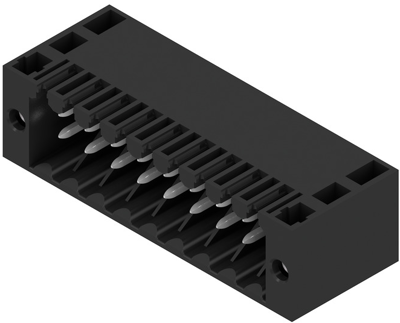

Pin header, 18 pole, pitch 3.5 mm, angled, black, 1728690000
Order No.: 51P9909
EAN: 4032248040155
MPN:
1728690000
S2L 3.50/18/90F 3.5SN BK BX
Unit Price (€ / pc.)
6.2118 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
6.21 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2118 €
10 pcs.
5.7239 €
50 pcs.
5.2122 €
100 pcs.
4.6767 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1728690000, Weidmüller
PCB Connector, Flange, THT Solder Termination, 3.50 mm, No. of Poles: 18, 90°, 3.5 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Rated voltage | 250 V | |
| Orientation | angled | |
| Number of rows | 2 | |
| Pin number | 18 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
