1728570000 | Weidmüller

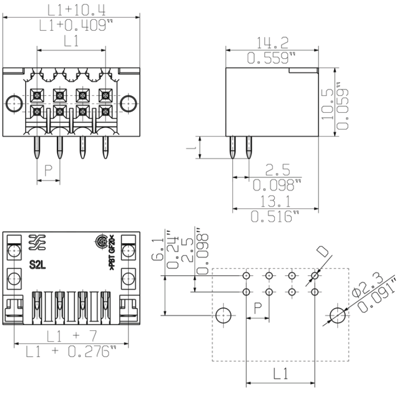

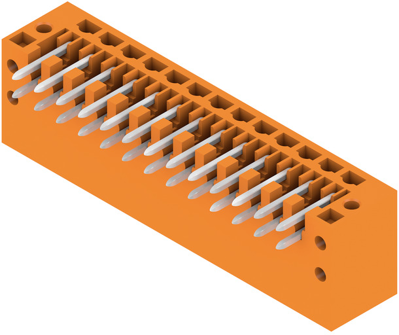

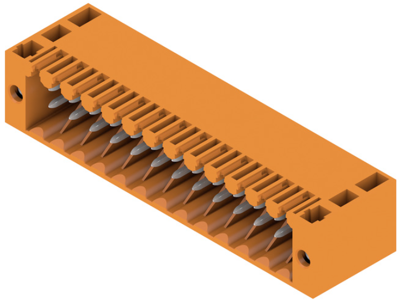

Pin header, 26 pole, pitch 3.5 mm, angled, orange, 1728570000
Order No.: 51P9897
EAN: 4032248040032
MPN:
1728570000
S2L 3.50/26/90F 3.5SN OR BX
Unit Price (€ / pc.)
6.1761 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 1728570000, Weidmüller
PCB Connector, Flange, THT Solder Termination, 3.50 mm, No. of Poles: 26, 90°, 3.5 mm, Tin Plated, Orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 10 A | |
| Grid | 3.5 mm | |
| Pin number | 26 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
