1727990000 | Weidmüller

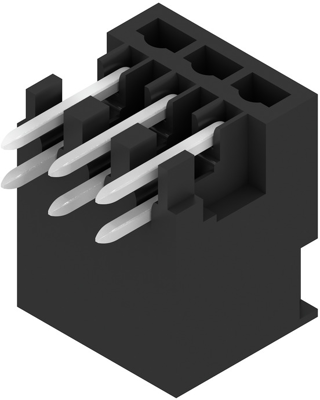

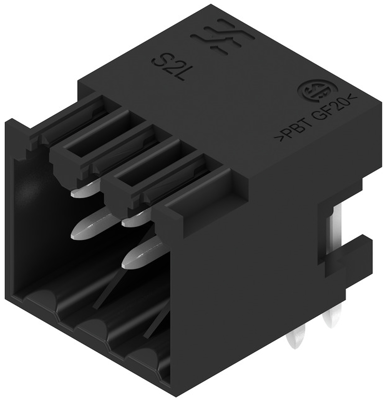

Pin header, 6 pole, pitch 3.5 mm, angled, black, 1727990000
Order No.: 51P9874
EAN: 4032248039487
MPN:
1727990000
S2L 3.50/06/90G 3.5SN BK BX
Unit Price (€ / pc.)
1.3447 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 1727990000, Weidmüller
Printed circuit board connectors, closed side, THT solder termination, 3.50 mm, no. of poles: 6, 90°, 3.5 mm, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Rated voltage | 250 V | |
| Orientation | angled | |
| Number of rows | 2 | |
| Pin number | 6 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
