1727950000 | Weidmüller

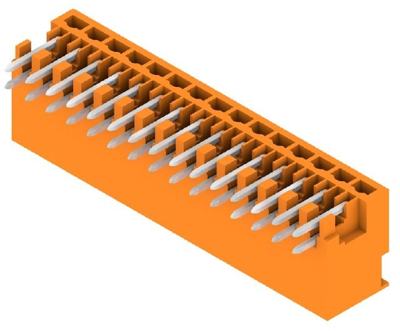

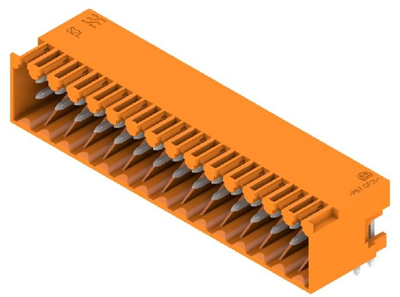

Pin header, 30 pole, pitch 3.5 mm, angled, orange, 1727950000
Order No.: 51P9870
EAN: 4032248039449
MPN:
1727950000
S2L 3.50/30/90G 3.5SN OR BX
Unit Price (€ / pc.)
6.3427 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 1727950000, Weidmüller
Printed circuit board connectors, closed side, THT solder termination, 3.50 mm, no. of poles: 30, 90°, 3.5 mm, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 10 A | |
| Grid | 3.5 mm | |
| Pin number | 30 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
