1726780000 | Weidmüller

Pin header, 12 pole, pitch 5.08 mm, straight, orange, 1726780000

Order No.: 51P9817
EAN: 4032248062669
MPN:
1726780000
SLD 5.08V/12/180B 3.2SN OR BX

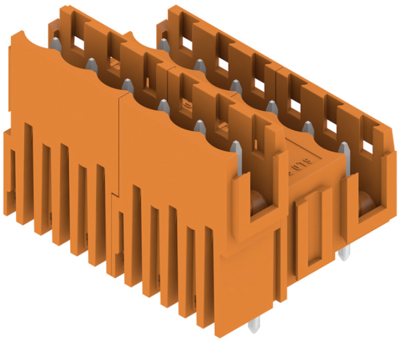

1726780000 Weidmüller PCB Connection Systems Image 1

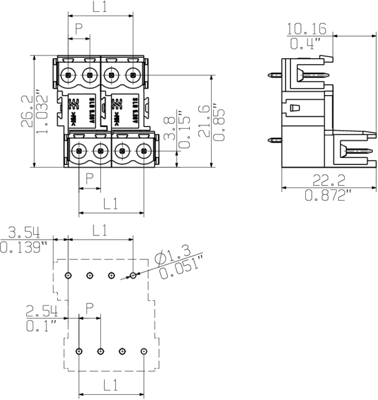

1726780000 Weidmüller PCB Connection Systems Image 2

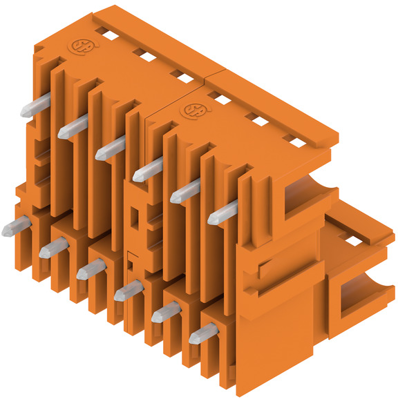

1726780000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.2483 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.2483 €

Male connector, 1726780000, Weidmüller

Printed circuit board connectors, male header, dovetails for mounting blocks, THT solder termination, 5.08 mm, no. of poles: 12, 180°, 3.2 mm, tinned.

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated voltage 400 V
Rated current 14 A
Grid 5.08 mm
Number of rows 2
Orientation straight
contact surface tin-plated
Version pin header
Colour orange
Connection PCB connection
Pin number 12 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
