1725710000 | Weidmüller

Pin header, 16 pole, pitch 5.08 mm, straight, orange, 1725710000

Order No.: 51P9778
EAN: 4032248062003
MPN:
1725710000
SLD 5.08V/16/180 3.2SN OR BX

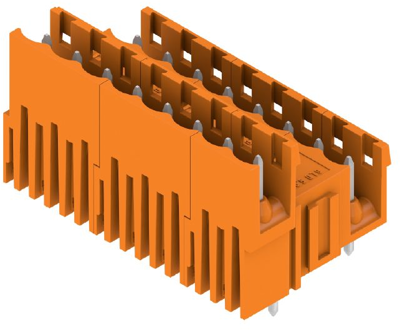

1725710000 Weidmüller PCB Connection Systems Image 1

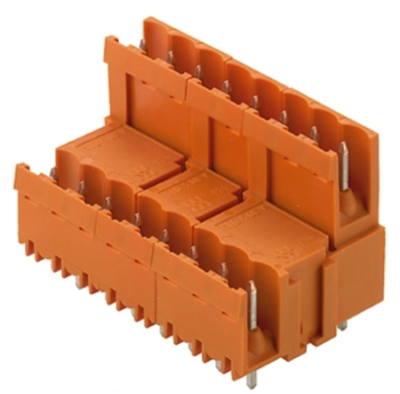

1725710000 Weidmüller PCB Connection Systems Image 2

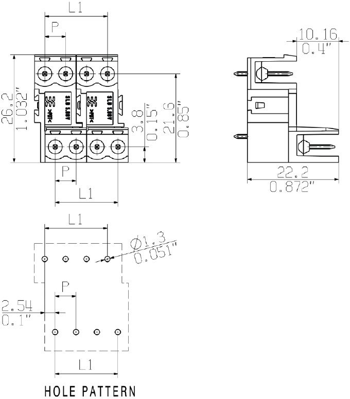

1725710000 Weidmüller PCB Connection Systems Image 3

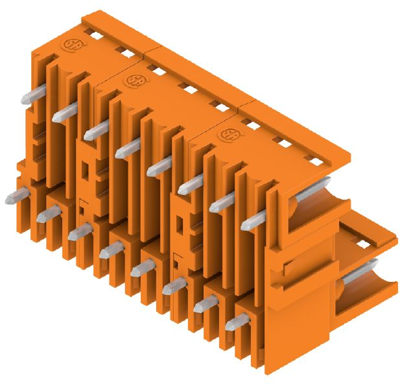

1725710000 Weidmüller PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
7.7707 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
7.77 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7707 €
10 pcs.
7.2471 €
50 pcs.
6.5807 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 1725710000, Weidmüller

Printed Circuit Board Connector, male header, side open, THT solder termination, 5.08 mm, no. of poles: 16, 180°, 3.2 mm, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour orange
contact surface tin-plated
Rated current 14 A
Grid 5.08 mm
Pin number 16 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 400 V
Number of rows 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
