1725210000 | Weidmüller

Pin header, 12 pole, pitch 5.08 mm, angled, orange, 1725210000

Order No.: 51P9755
EAN: 4032248060610
MPN:
1725210000
SLD 5.08V/12/90 3.2 SN OR BX

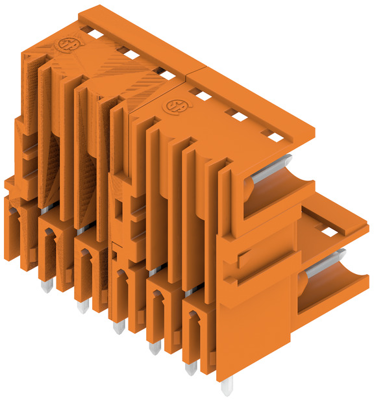

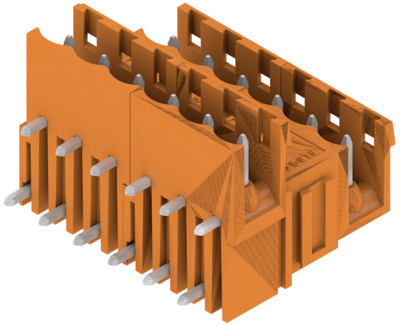

1725210000 Weidmüller PCB Connection Systems Image 1
1725210000 Weidmüller PCB Connection Systems Image 2
1725210000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.2483 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.2483 €

Male connector, 1725210000, Weidmüller

PCB connectors, male header, open sideways, THT solder termination, 5.08 mm, no. of poles: 12, 90°, 3.2 mm, tinned, orange, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour orange
contact surface tin-plated
Rated current 17 A
Grid 5.08 mm
Pin number 12 pole
Version pin header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type pin
Rated voltage 400 V
Number of rows 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
