1702070000 | Weidmüller

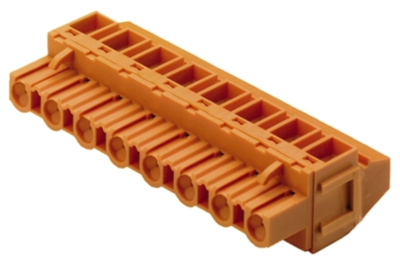

Socket header, 8 pole, pitch 7.5 mm, angled, orange, 1702070000
Order No.: 51P9258
EAN: 4008190908546
MPN:
1702070000
BLZ 7.50/08/90B SN OR BX
Unit Price (€ / pc.)
6.6164 € *
Standard delivery time from the manufacturer is: 6 Weeks
Female connector, 1702070000, Weidmüller
PCB connectors, dovetails for mounting blocks, 7.50 mm, no. of poles: 8, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 7.5 mm | |
| Pin number | 8 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 800 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
