1682870000 | Weidmüller
Pin header, 16 pole, pitch 5.08 mm, straight, orange, 1682870000
Order No.: 51P8853
EAN: 4008190474638
MPN:
1682870000
BLL 5.08/16/180B 3.2SN OR BX
Unit Price (€ / pc.)
9.4248 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
9.42 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4248 €
10 pcs.
8.7703 €
50 pcs.
7.9849 €
*incl. VAT plus shipping costs
Subject to prior sale

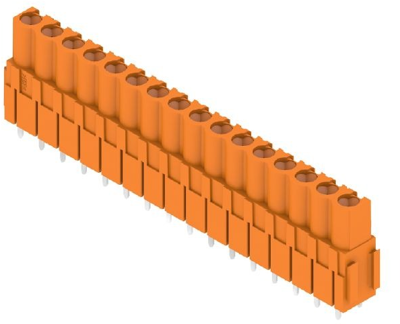

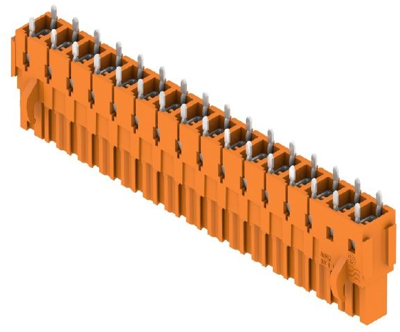

Male connector, 1682870000, Weidmüller
PCB connectors, male header, dovetails for mounting blocks, THT solder termination, 5.08 mm, poles: 16, 180°, 3.2 mm, tinned.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 23 A | |
| Grid | 5.08 mm | |
| Pin number | 16 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
