1643340000 | Weidmüller

Pin header, 3 pole, pitch 3.5 mm, angled, orange, 1643340000

Order No.: 51P8321
EAN: 4008190282103
MPN:
1643340000
SL 3.50/03/135F 3.2SN OR BX

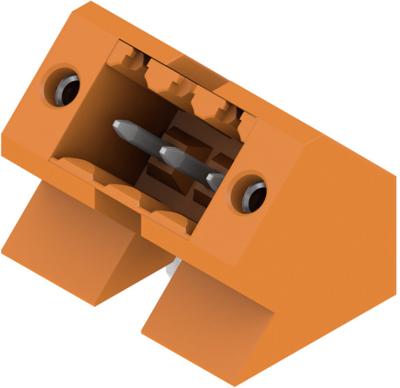

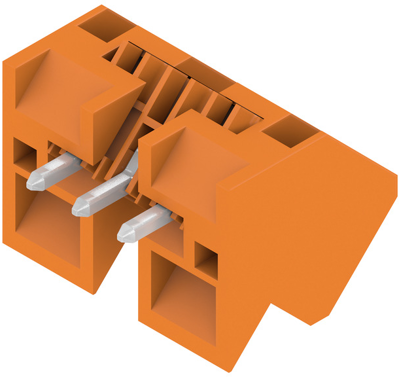

1643340000 Weidmüller PCB Connection Systems Image 1
1643340000 Weidmüller PCB Connection Systems Image 2
1643340000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.7731 € *
Available: 99 pcs.
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.6303 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 1643340000, Weidmüller

Printed Circuit Board Connector, flange, THT solder termination, 3.50 mm, no. of poles: 3, 135°, 3.2 mm, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Colour orange
contact surface tin-plated
Rated current 17 A
Grid 3.5 mm
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
