1643330000 | Weidmüller

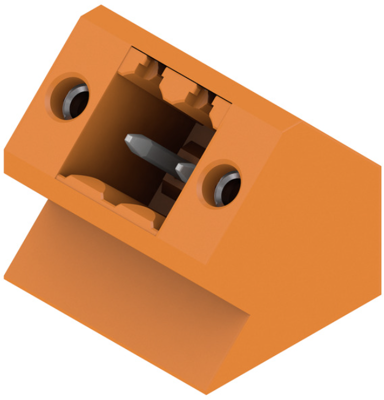

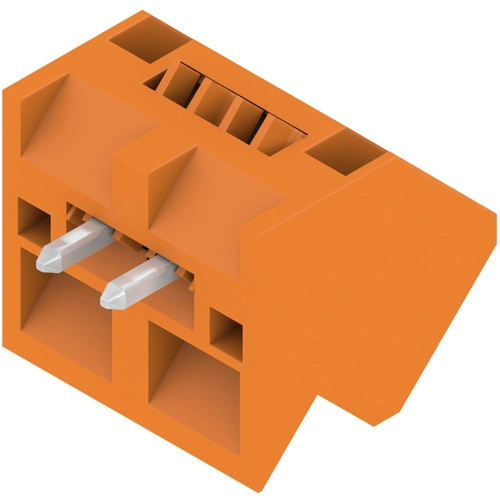

Pin header, 2 pole, pitch 3.5 mm, angled, orange, 1643330000
Order No.: 51P8320
EAN: 4008190282097
MPN:
1643330000
SL 3.50/02/135F 3.2SN OR BX
Unit Price (€ / pc.)
1.4042 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
10 pcs.
1.2733 €
50 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1643330000, Weidmüller
Printed Circuit Board Connector, flange, THT solder termination, 3.50 mm, no. of poles: 2, 135°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 3.5 mm | |
| Pin number | 2 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
