1642260000 | Weidmüller

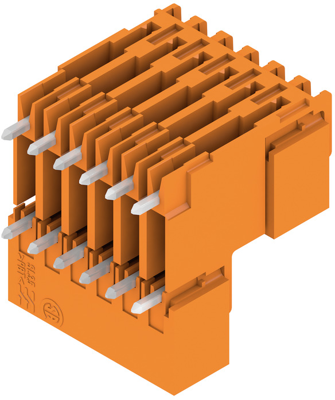

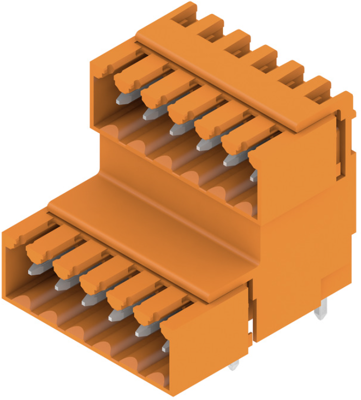

Pin header, 12 pole, pitch 3.5 mm, angled, orange, 1642260000
Order No.: 51P8298
EAN: 4008190280789
MPN:
1642260000
SLD 3.50V/12/90G 3.2SN OR BX
Unit Price (€ / pc.)
4.4744 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 1642260000, Weidmüller
Printed Circuit Board Connector, closed side, THT solder termination, 3.50 mm, no. of poles: 12, 90°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10.5 A | |
| Rated voltage | 200 V | |
| Version | pin header | |
| Number of rows | 2 | |
| Orientation | angled | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Pin number | 12 pole | |
| Grid | 3.5 mm | |
| Contact type | pin | |
| Colour | orange | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
