1638610000 | Weidmüller

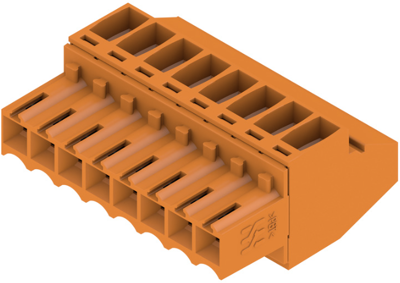

Socket header, 8 pole, pitch 3.5 mm, angled, orange, 1638610000
Order No.: 51P8124
EAN: 4008190276157
MPN:
1638610000
BL 3.50/08/90 SN OR BX
Unit Price (€ / pc.)
5.1884 € *
Available in 6 Days: 330 pcs. - if ordered today
Female connector, 1638610000, Weidmüller
Printed circuit board connectors, laterally closed, 3.50 mm, no. of poles: 8, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Grid | 3.5 mm | |
| Number of rows | 1 | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | socket header | |
| Colour | orange | |
| Connection | screw connection | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
