1635560000 | Weidmüller
Pin header, 8 pole, pitch 5.08 mm, angled, black, 1635560000
Order No.: 50P3823
EAN: 4008190263997
MPN:
1635560000
SL 5.08/08/135B 4.5SN BK BX
Unit Price (€ / pc.)
2.5228 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
2.3324 €
50 pcs.
2.1777 €
100 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1635560000, WEIDMÜLLER

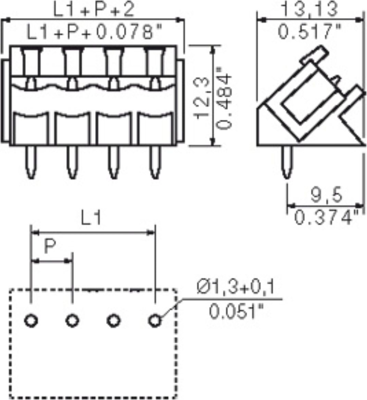

PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.08 mm, Number of poles: 8, 135°, Solder pin length (l): 4.5 mm, tinned, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Connection | solder connection | |
| Version | pin header | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Contact type | pin | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
