1633620000 | Weidmüller

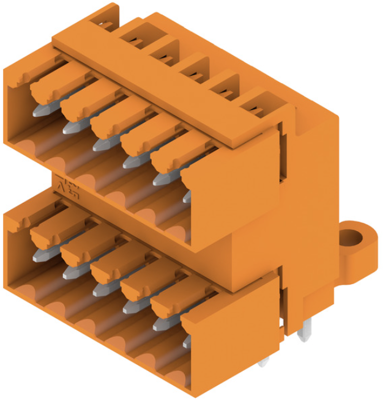

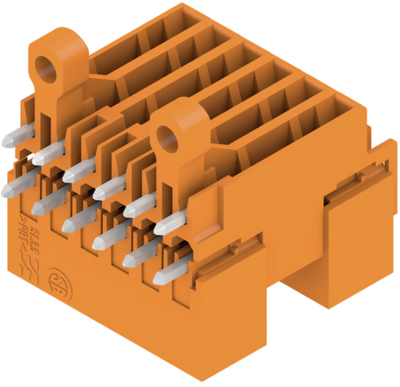

Pin header, 12 pole, pitch 3.5 mm, angled, orange, 1633620000
Order No.: 51P8049
EAN: 4008190258078
MPN:
1633620000
SLD 3.50/12/90G 3.2SN OR BX
Unit Price (€ / pc.)
4.4744 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 1633620000, Weidmüller
Board Connector, lateral closed, THT solder termination, 3.50 mm, no. of poles: 12, 90°, 3.2 mm, tin plated, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Number of rows | 2 | |
| Colour | orange | |
| Rated current | 10.5 A | |
| contact surface | tin-plated | |
| Connection | PCB connection | |
| Orientation | angled | |
| Additional parts | equipped | |
| Rated voltage | 200 V | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
