1633400000 | Weidmüller
Pin header, 14 pole, pitch 3.5 mm, angled, orange, 1633400000
Order No.: 51P8035
EAN: 4008190257859
MPN:
1633400000
SLD 3.50/14/90 3.2SN OR BX
Unit Price (€ / pc.)
7.1281 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
7.13 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1281 €
10 pcs.
6.6402 €
50 pcs.
6.0571 €
*incl. VAT plus shipping costs
Subject to prior sale

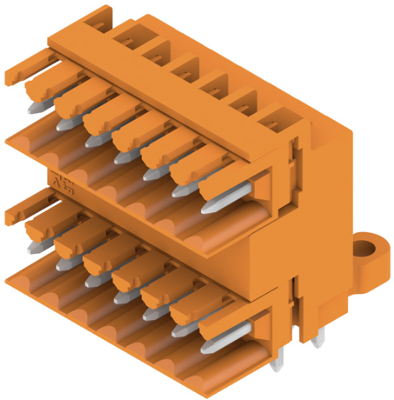

Male connector, 1633400000, Weidmüller
PCB connector, open side, THT solder termination, 3.50 mm, no. of poles: 14, 90°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 10.5 A | |
| Grid | 3.5 mm | |
| Pin number | 14 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 200 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
