1629090000 | Weidmüller

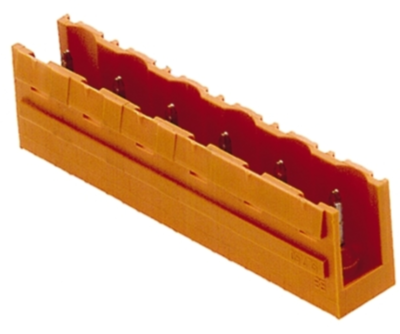

Pin header, 9 pole, pitch 7.5 mm, straight, orange, 1629090000
Order No.: 51P7910
EAN: 4008190201890
MPN:
1629090000
SL 7.50/09/180 3.2SN OR BX
Unit Price (€ / pc.)
3.2130 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2130 €
10 pcs.
2.9631 €
50 pcs.
2.6775 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1629090000, Weidmüller
Printed circuit board connector, open sided, THT solder termination, 7.50 mm, no. of poles: 9, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 800 V | |
| Rated current | 18.5 A | |
| Orientation | straight | |
| Pin number | 9 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
