1629030000 | Weidmüller
Pin header, 3 pole, pitch 7.5 mm, straight, orange, 1629030000
Order No.: 51P7904
EAN: 4008190201838
MPN:
1629030000
SL 7.50/03/180 3.2SN OR BX
Unit Price (€ / pc.)
1.0710 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
500 pcs.
0.9639 €
2500 pcs.
0.8687 €
*incl. VAT plus shipping costs
**Subject to prior sale

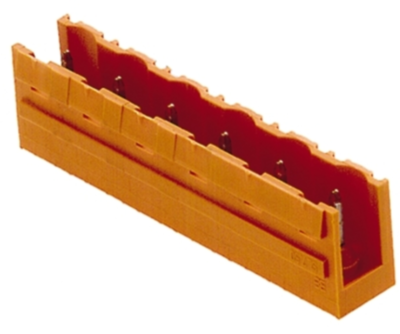

Male connector, 1629030000, Weidmüller
PCB Connector, open sided, THT solder termination, 7.50 mm, no. of poles: 3, 180°, 3.2 mm, tin plated, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 800 V | |
| Rated current | 18.5 A | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
