1627980000 | Weidmüller

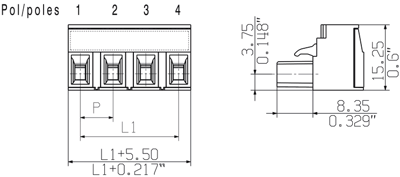

Socket header, 8 pole, pitch 7.5 mm, straight, orange, 1627980000
Order No.: 51P7865
EAN: 4008190200787
MPN:
1627980000
BLZ 7.50/08/180 SN OR BX
Unit Price (€ / pc.)
6.3784 € *
Available in 6 Days: 200 pcs. - if ordered today

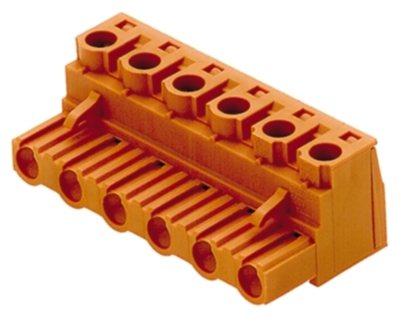

Female connector, 1627980000, Weidmüller
Printed circuit board connector, closed side, 7.50 mm, no. of poles: 8, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Pin number | 8 pole | |
| Rated voltage | 800 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 7.5 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | screw connection | |
| Rated current | 18.5 A | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
