1627920000 | Weidmüller
Socket header, 2 pole, pitch 7.5 mm, straight, orange, 1627920000
Order No.: 51P7859
EAN: 4008190200725
MPN:
1627920000
BLZ 7.50/02/180 SN OR BX
Unit Price (€ / pc.)
2.2967 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1420 €
50 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1627920000, Weidmüller
Printed circuit board connectors, laterally closed, 7.50 mm, no. of poles: 2, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

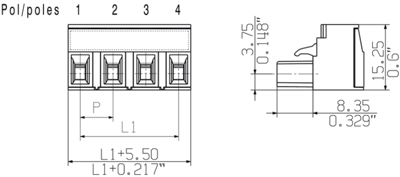

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated current | 18.5 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 2 pole | |
| contact surface | tin-plated | |
| Colour | orange | |
| Rated voltage | 800 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
