1627310000 | Weidmüller
Pin header, 9 pole, pitch 5.08 mm, straight, orange, 1627310000
Order No.: 51P7846
EAN: 4008190199821
MPN:
1627310000
SLS 5.08/09/180B SN OR BX
Unit Price (€ / pc.)
8.1396 € *
Available: 28 pcs.
Available in 6 Days: 72 pcs. - if ordered today
Total Price:
8.14 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1396 €
10 pcs.
7.4851 €
50 pcs.
6.8187 €
100 pcs.
6.1285 €
*incl. VAT plus shipping costs
Subject to prior sale

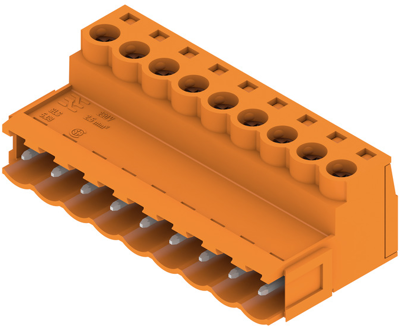

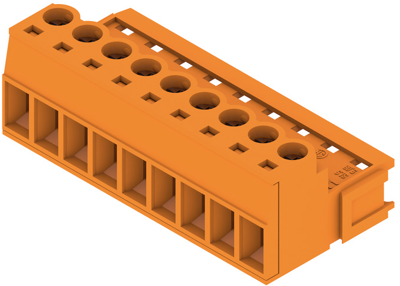

Male connector, 1627310000, Weidmüller
Printed circuit board connector, male connector, dovetails for mounting blocks, 5.08 mm, number of poles: 9, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 21.5 A | |
| Rated voltage | 400 V | |
| Version | pin header | |
| Number of rows | 1 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Pin number | 9 pole | |
| Grid | 5.08 mm | |
| Contact type | pin | |
| Colour | orange | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
