1627220000 | Weidmüller

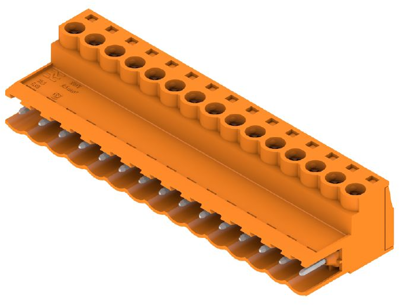

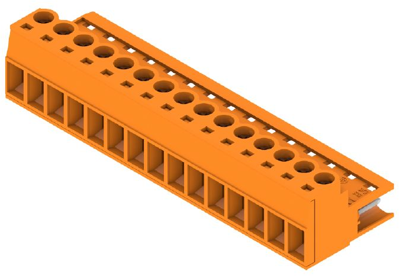

Pin header, 15 pole, pitch 5.08 mm, straight, orange, 1627220000
Order No.: 51P7838
EAN: 4008190199739
MPN:
1627220000
SLS 5.08/15/180 SN OR BX
Unit Price (€ / pc.)
9.6866 € *
Standard delivery time from the manufacturer is: 10 Weeks
Male connector, 1627220000, Weidmüller
PCB connectors, male header, open sideways, 5.08 mm, no. of poles: 15, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | screw connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 15 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 21.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
