1625120000 | Weidmüller
Pin header, 11 pole, pitch 7.62 mm, straight, orange, 1625120000
Order No.: 51P7808
EAN: 4008190196172
MPN:
1625120000
SL 7.62/11/180 3.2SN OR BX
Unit Price (€ / pc.)
4.4030 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4030 €
10 pcs.
4.0460 €
50 pcs.
3.6771 €
100 pcs.
3.3082 €
*incl. VAT plus shipping costs
Subject to prior sale

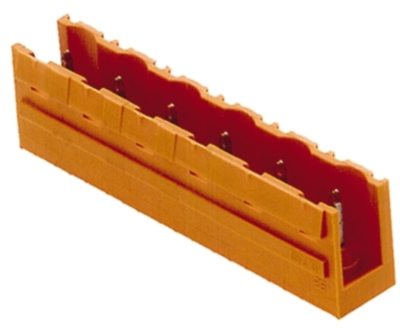

Male connector, 1625120000, Weidmüller
PCB Connector, side open, THT solder termination, 7.62 mm, no. of poles: 11, 180°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| Pin number | 11 pole | |
| Colour | orange | |
| Contact type | pin | |
| Rated current | 18.5 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 800 V | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
