1625060000 | Weidmüller
Pin header, 5 pole, pitch 7.62 mm, straight, orange, 1625060000
Order No.: 51P7803
EAN: 4008190196110
MPN:
1625060000
SL 7.62/05/180 3.2SN OR BX
Unit Price (€ / pc.)
1.9992 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.00 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9992 €
10 pcs.
1.8445 €
50 pcs.
1.6660 €
100 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale

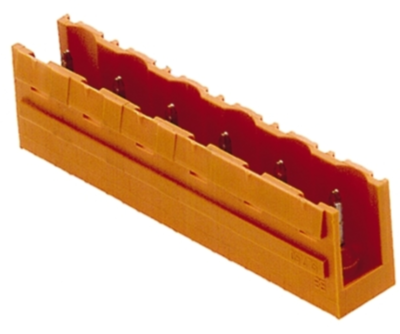

Male connector, 1625060000, Weidmüller
Printed Circuit Board Connector, side open, THT solder termination, 7.62 mm, no. of poles: 5, 180°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

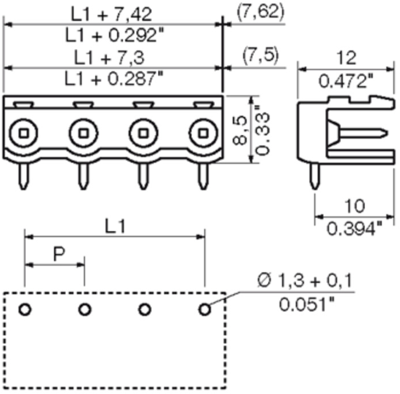

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Rated voltage | 800 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 5 pole | |
| Additional parts | equipped | |
| Colour | orange | |
| Version | pin header | |
| Rated current | 18.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
