1624220000 | Weidmüller
Pin header, 9 pole, pitch 7.62 mm, angled, orange, 1624220000
Order No.: 51P7788
EAN: 4008190195274
MPN:
1624220000
SL 7.62/09/90 3.2SN OR BX
Unit Price (€ / pc.)
3.4510 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4510 €
10 pcs.
3.2249 €
50 pcs.
2.8917 €
*incl. VAT plus shipping costs
**Subject to prior sale

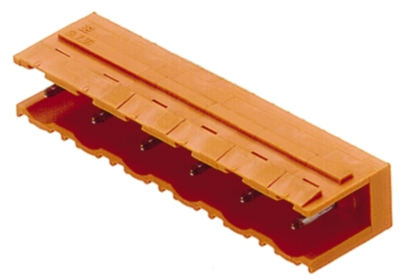

Male connector, 1624220000, Weidmüller
PCB connectors, open side, THT solder termination, 7.62 mm, no. of poles: 9, 90°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
Connection | PCB connection | |
Number of rows | 1 | |
Version | pin header | |
Colour | orange | |
Contact type | pin | |
contact surface | tin-plated | |
Rated voltage | 800 V | |
Rated current | 18.5 A | |
Orientation | angled | |
Pin number | 9 pole | |
Grid | 7.62 mm |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85366990 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
