1622950000 | Weidmüller

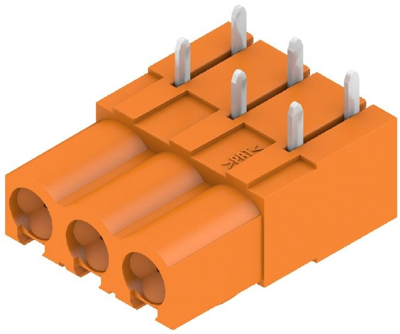

Pin header, 3 pole, pitch 5.08 mm, angled, orange, 1622950000
Order No.: 51P7771
EAN: 4008190194031
MPN:
1622950000
BLL 5.08/03/90 3.2 SN OR BX
Unit Price (€ / pc.)
1.8207 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.7017 €
50 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1622950000, Weidmüller
Printed Circuit Board Connector, Male Header, Side Closed, THT Solder Termination, 5.08 mm, Pole Number: 3, 90°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Version | socket header | |
| contact surface | tin-plated | |
| Colour | orange | |
| Number of rows | 1 | |
| Pin number | 3 pole | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| Contact type | socket | |
| Connection | PCB connection | |
| Rated current | 23 A | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
