1622180000 | Weidmüller

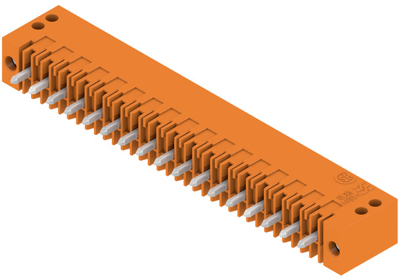

Pin header, 17 pole, pitch 3.5 mm, straight, orange, 1622180000
Order No.: 51P7762
EAN: 4008190188641
MPN:
1622180000
SL 3.50/17/180F 3.2SN OR BX
Unit Price (€ / pc.)
5.7953 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
5.80 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7953 €
10 pcs.
5.3907 €
50 pcs.
4.9147 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1622180000, Weidmüller
PCB connectors, flange, THT solder termination, 3.50 mm, no. of poles: 17, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Grid | 3.5 mm | |
| Pin number | 17 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
