1621800000 | Weidmüller

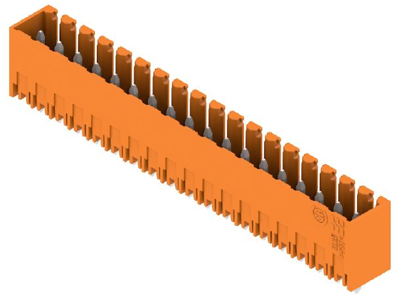

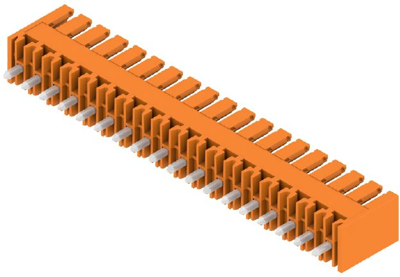

Pin header, 18 pole, pitch 3.5 mm, straight, orange, 1621800000
Order No.: 51P7755
EAN: 4008190180676
MPN:
1621800000
SL 3.50/18/180G 3.2SN OR BX
Unit Price (€ / pc.)
5.4026 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
5.40 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4026 €
10 pcs.
5.0337 €
50 pcs.
4.5696 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1621800000, Weidmüller
Printed circuit board connector, closed sideways, THT solder termination, 3.50 mm, pole count: 18, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Grid | 3.5 mm | |
| Pin number | 18 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
