1615790000 | Weidmüller
Socket header, 3 pole, pitch 3.5 mm, straight, black, 1615790000
Order No.: 51P7668
EAN: 4008190062132
MPN:
1615790000
BL 3.50/03/180F SN BK BX
Unit Price (€ / pc.)
2.2729 € *
Available in 6 Days: 510 pcs. - if ordered today

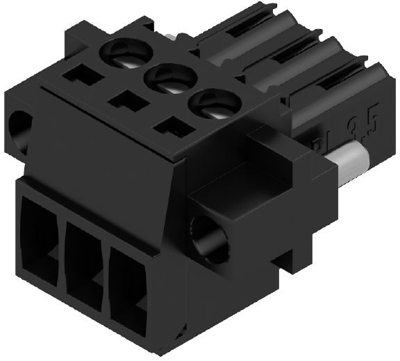

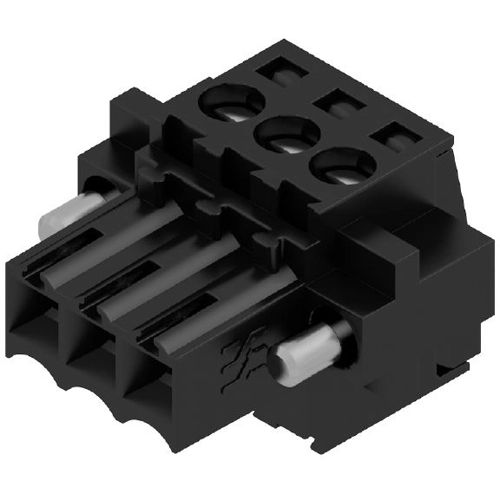

Female connector, 1615790000, Weidmüller
PCB connectors, flange, 3.50 mm, no. of poles: 3, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Additional parts | equipped | |
| Rated voltage | 320 V | |
| Pin number | 3 pole | |
| Grid | 3.5 mm | |
| Version | socket header | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated current | 17 A | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Colour | black | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
