1615740000 | Weidmüller

Socket header, 13 pole, pitch 3.5 mm, straight, black, 1615740000

Order No.: 51P7663
EAN: 4008190060824
MPN:
1615740000
BL 3.50/13/180 SN BK BX

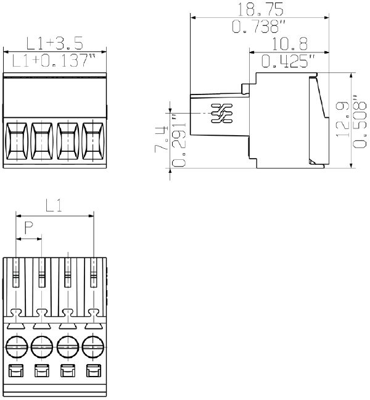

1615740000 Weidmüller PCB Connection Systems Image 1

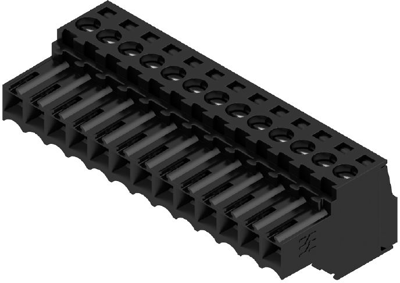

1615740000 Weidmüller PCB Connection Systems Image 2

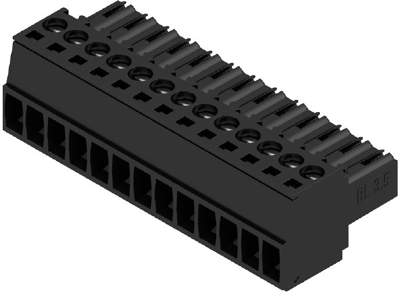

1615740000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
8.0087 € *
Available: 34 pcs.
Total Price:
8.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.0087 €

Female connector, 1615740000, Weidmüller

PCB connectors, closed sideways, 3.50 mm, no. of poles: 13, tin-plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 3.5 mm
Orientation straight
Connection screw connection
Contact type socket
Rated current 17 A
Additional parts equipped
Version socket header
Pin number 13 pole
contact surface tin-plated
Number of rows 1
Colour black
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
