1614830000 | Weidmüller

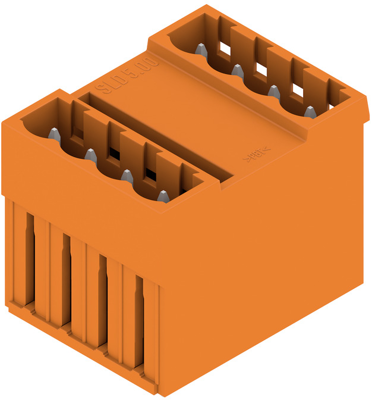

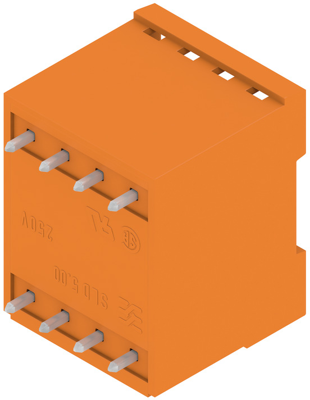

Pin header, 8 pole, pitch 5 mm, straight, orange, 1614830000
Order No.: 51P7633
EAN: 4008190039172
MPN:
1614830000
SLD 5.00/08/180G 3.2SN OR BX
Unit Price (€ / pc.)
3.9032 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9032 €
10 pcs.
3.5819 €
50 pcs.
3.2606 €
100 pcs.
2.9274 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1614830000, Weidmüller
PCB connectors, closed side, THT solder termination, 5.00 mm, no. of poles: 8, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 11 A | |
| Grid | 5 mm | |
| Pin number | 8 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
