1614550000 | Weidmüller
Pin header, 4 pole, pitch 5 mm, angled, orange, 1614550000
Order No.: 51P7628
EAN: 4008190032739
MPN:
1614550000
SLD 5.00/44/90G 3.2 SN OR BX
Unit Price (€ / pc.)
31.4993 € *
Available in 5 Days: 20 pcs. - if ordered today

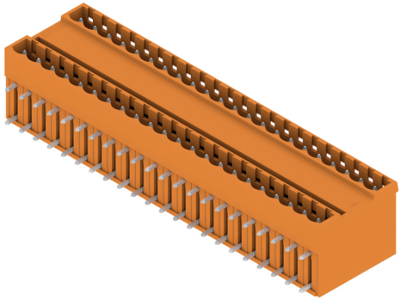

Male connector, 1614550000, Weidmüller
Printed Circuit Board Connector, closed side, THT solder termination, 5.00 mm, no. of poles: 44, 90°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Grid | 5 mm | |
| Rated voltage | 400 V | |
| Number of rows | 2 | |
| Additional parts | equipped | |
| Orientation | angled | |
| Version | pin header | |
| Colour | orange | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Pin number | 4 pole | |
| Rated current | 11 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
