1614520000 | Weidmüller

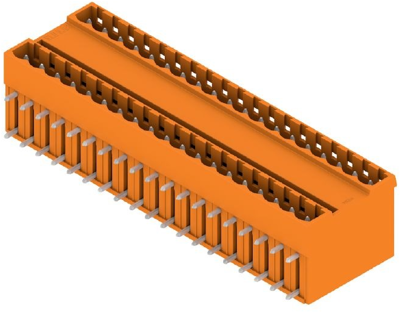

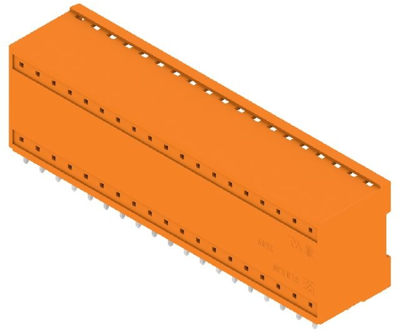

Pin header, 38 pole, pitch 5 mm, angled, orange, 1614520000
Order No.: 51P7625
EAN: 4008190032623
MPN:
1614520000
SLD 5.00/38/90G 3.2 SN OR BX
Unit Price (€ / pc.)
17.7548 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
17.75 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7548 €
10 pcs.
16.3387 €
50 pcs.
14.8631 €
100 pcs.
13.3875 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1614520000, Weidmüller
PCB Connector, closed side, THT solder termination, 5.00 mm, no. of poles: 38, 90°, 3.2 mm, tin plated, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 11 A | |
| Grid | 5 mm | |
| Pin number | 38 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
