1614380000 | Weidmüller

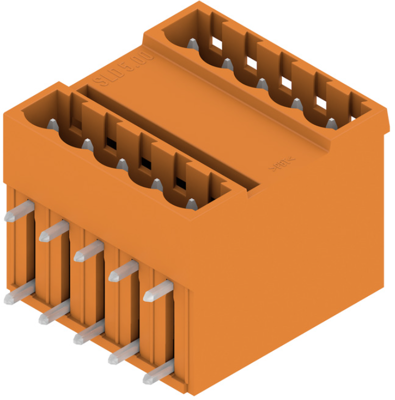

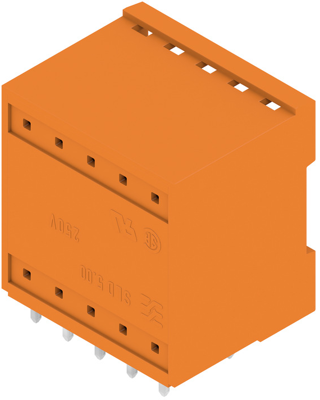

Pin header, 10 pole, pitch 5 mm, angled, orange, 1614380000
Order No.: 51P7611
EAN: 4008190029593
MPN:
1614380000
SLD 5.00/10/90G 3.2 SN OR BX
Unit Price (€ / pc.)
4.8671 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
4.87 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8671 €
10 pcs.
4.4744 €
50 pcs.
4.0817 €
100 pcs.
3.6652 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1614380000, Weidmüller
Printed Circuit Board Connector, side mount, THT solder termination, 5.00 mm, no. of poles: 10, 90°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 11 A | |
| Grid | 5 mm | |
| Pin number | 10 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
