1607600000 | Weidmüller

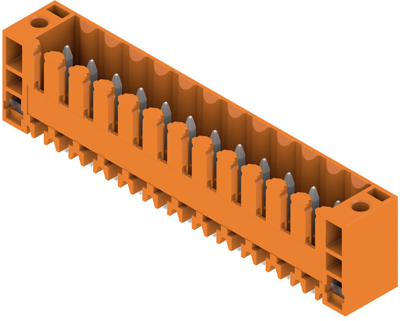

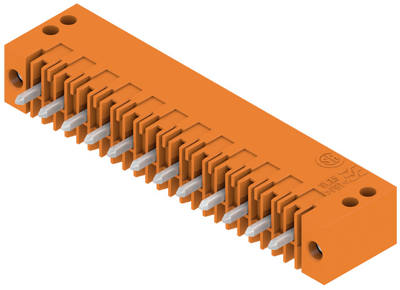

Pin header, 12 pole, pitch 3.5 mm, straight, orange, 1607600000
Order No.: 51P7386
EAN: 4008190164935
MPN:
1607600000
SL 3.50/12/180F 3.2SN OR BX
Unit Price (€ / pc.)
4.5220 € *
Available: 47 pcs.
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5220 €
10 pcs.
4.1531 €
50 pcs.
3.7842 €
100 pcs.
3.4034 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1607600000, Weidmüller
Printed Circuit Board Connector, flange, THT solder termination, 3.50 mm, no. of poles: 12, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Connection | PCB connection | |
| Rated current | 17 A | |
| Colour | orange | |
| Grid | 3.5 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Version | pin header | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
