1607580000 | Weidmüller
Pin header, 10 pole, pitch 3.5 mm, straight, orange, 1607580000
Order No.: 51P7384
EAN: 4008190187545
MPN:
1607580000
SL 3.50/10/180F 3.2SN OR BX
Unit Price (€ / pc.)
3.8913 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8913 €
10 pcs.
3.5819 €
50 pcs.
3.2606 €
100 pcs.
2.9274 €
*incl. VAT plus shipping costs
**Subject to prior sale

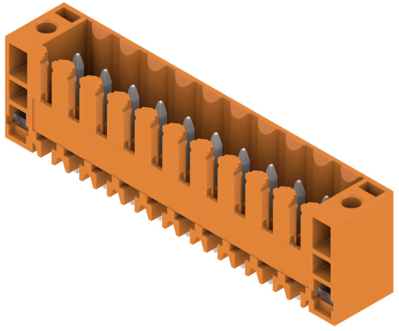

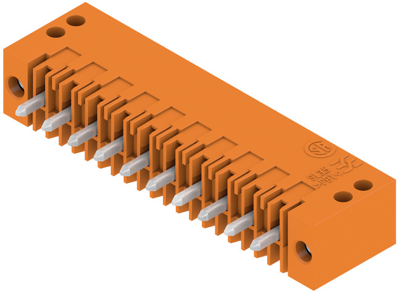

Male connector, 1607580000, Weidmüller
PCB connector, flange, THT solder termination, 3.50 mm, no. of poles: 10, 180°, 3.2 mm, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Grid | 3.5 mm | |
| Pin number | 10 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
