1607510000 | Weidmüller

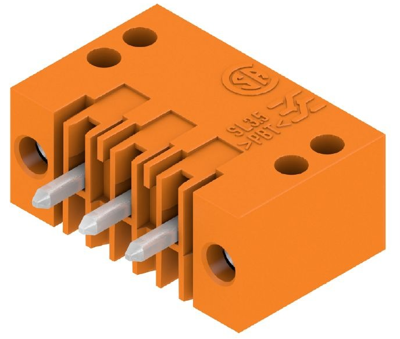

Pin header, 3 pole, pitch 3.5 mm, straight, orange, 1607510000
Order No.: 51P7377
EAN: 4008190163907
MPN:
1607510000
SL 3.50/03/180F 3.2SN OR BX
Unit Price (€ / pc.)
1.6660 € *
Available: 80 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.4994 €
50 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1607510000, Weidmüller
Printed circuit board connector, flange, THT solder termination, 3.50 mm, no. of poles: 3, 180°, 3.2 mm, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Version | pin header | |
| Colour | orange | |
| Grid | 3.5 mm | |
| Rated current | 17 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
