1606130000 | Weidmüller

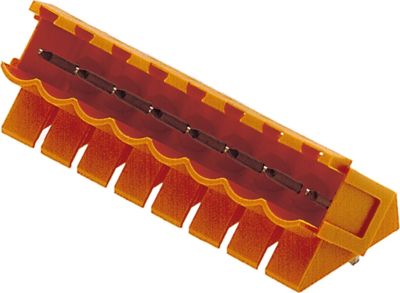

Pin header, 16 pole, pitch 5.08 mm, angled, orange, 1606130000
Order No.: 50P3872
EAN: 4008190049744
MPN:
1606130000
SL 5.08/16/135B 4.5SN OR BX
Unit Price (€ / pc.)
4.5815 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
4.58 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5815 €
10 pcs.
4.2721 €
50 pcs.
4.0103 €
100 pcs.
3.7604 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1606130000, WEIDMÜLLER
PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.08 mm, Number of poles: 16, 135°, Solder pin length (l): 4.5 mm, tinned, orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Connection | solder connection | |
| Version | pin header | |
| Orientation | angled | |
| Pin number | 16 pole | |
| Contact type | pin | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
