1605750000 | Weidmüller

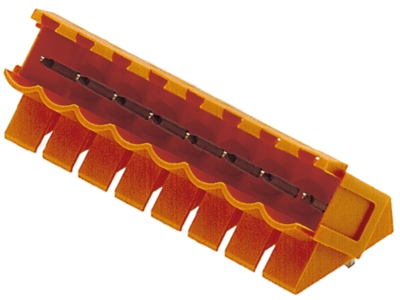

Pin header, 24 pole, pitch 5.08 mm, angled, orange, 1605750000
Order No.: 51P7344
EAN: 4008190007683
MPN:
1605750000
SL 5.08/24/135B 3.2SN OR BX
Unit Price (€ / pc.)
7.5446 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
7.54 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5446 €
10 pcs.
7.0091 €
50 pcs.
6.3903 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1605750000, Weidmüller
PCB connectors, male header, dovetails for mounting blocks, THT solder termination, 5.08 mm, no. of poles: 24, 135°, 3.2 mm, tin plated.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Grid | 5.08 mm | |
| Pin number | 24 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
