1605620000 | Weidmüller
Pin header, 11 pole, pitch 5.08 mm, angled, orange, 1605620000
Order No.: 51P7331
EAN: 4008190177508
MPN:
1605620000
SL 5.08/11/135B 3.2SN OR BX
Unit Price (€ / pc.)
3.6295 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
3.63 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6295 €
10 pcs.
3.3439 €
50 pcs.
3.0345 €
100 pcs.
2.7370 €
*incl. VAT plus shipping costs
**Subject to prior sale

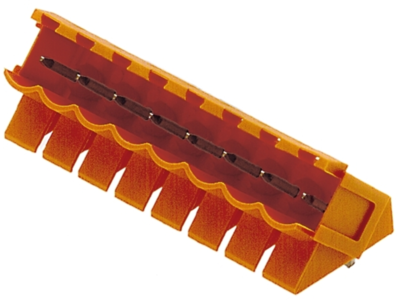

Male connector, 1605620000, Weidmüller
Printed circuit board connector, male connector, dovetails for mounting blocks, THT solder termination, 5.08 mm, number of poles: 11, 135°, 3.2 mm, tin-plated.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Grid | 5.08 mm | |
| Pin number | 11 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
