1605210000 | Weidmüller

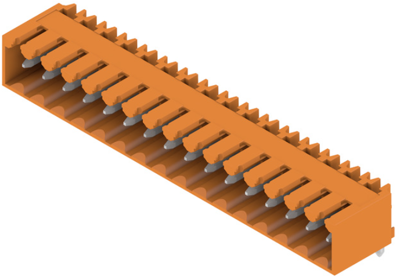

Pin header, 16 pole, pitch 3.5 mm, angled, orange, 1605210000
Order No.: 51P7321
EAN: 4008190129255
MPN:
1605210000
SL 3.50/16/90G 3.2SN OR BX
Unit Price (€ / pc.)
5.0456 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
5.05 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0456 €
10 pcs.
4.6410 €
50 pcs.
4.2245 €
100 pcs.
3.7961 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1605210000, Weidmüller
Printed circuit board connector, closed side, THT solder termination, 3.50 mm, no. of poles: 16, 90°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Number of rows | 1 | |
| Contact type | pin | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Additional parts | equipped | |
| Grid | 3.5 mm | |
| Version | pin header | |
| Rated voltage | 320 V | |
| Pin number | 16 pole | |
| Connection | PCB connection | |
| Colour | orange |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
