1605100000 | Weidmüller
Pin header, 5 pole, pitch 3.5 mm, angled, orange, 1605100000
Order No.: 51P7310
EAN: 4008190102609
MPN:
1605100000
SL 3.50/05/90G 3.2SN OR BX
Unit Price (€ / pc.)
1.5827 € *
Available: 20 pcs.
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
10 pcs.
1.4518 €
50 pcs.
1.3209 €
100 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

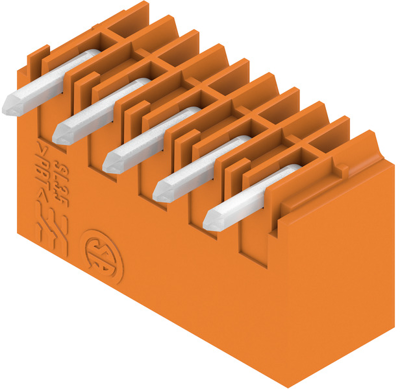

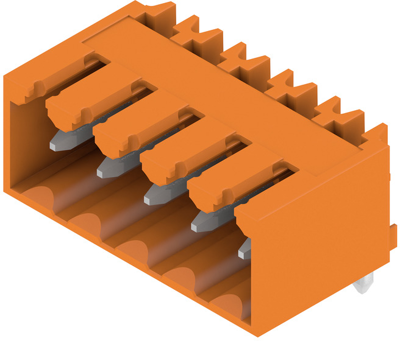

Male connector, 1605100000, Weidmüller
Printed Circuit Board Connector, lateral closed, THT solder termination, 3.50 mm, no. of poles: 5, 90°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 5 pole | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Rated current | 17 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
