1604790000 | Weidmüller
Pin header, 4 pole, pitch 3.5 mm, straight, orange, 1604790000
Order No.: 51P7294
EAN: 4008190127855
MPN:
1604790000
SL 3.50/04/180 3.2SN OR BX
Unit Price (€ / pc.)
1.2495 € *
Available: 54 pcs.
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
500 pcs.
1.1424 €
2500 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

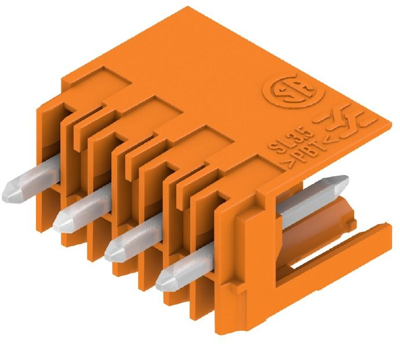

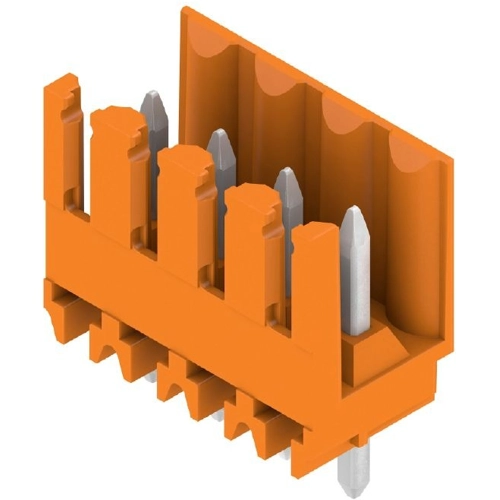

Male connector, 1604790000, Weidmüller
PCB connector, side open, THT solder termination, 3.50 mm, no. of poles: 4, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated current | 17 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 4 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | orange | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
